Example: Signal and Noise
This example demonstrates how to produce a signal of interest and an additive noise signal. The noise signal is only applied during a specified time window.
Realtime Example
using AuditoryStimuli, Unitful, Plots, Pipe, DSP
# Specify the source, modifiers, and sink of our audio pipeline
source = NoiseSource(Float64, 48u"kHz", 1, 1)
noisesource = NoiseSource(Float64, 48u"kHz", 1, 1)
sink = DummySampleSink(Float64, 48u"kHz", 1)
am = AmplitudeModulation(40u"Hz")
# Design the filter
responsetype = Bandpass(1500, 2500; fs=48000)
designmethod = Butterworth(14)
zpg = digitalfilter(responsetype, designmethod)
f_left = DSP.Filters.DF2TFilter(zpg)
bp = AuditoryStimuli.Filter([f_left])
# Run real time audio processing
for frame = 1:100
# Generate the signal of interest
output = @pipe read(source, 0.01u"s") |> modify(bp, _) |> modify(am, _)
# During 0.3-0.7s add a white noise to the output
if 30 < frame < 70
output += read(noisesource, 0.01u"s")
end
# Write the output to device
write(sink, output)
end
# Validate the audio pipeline output

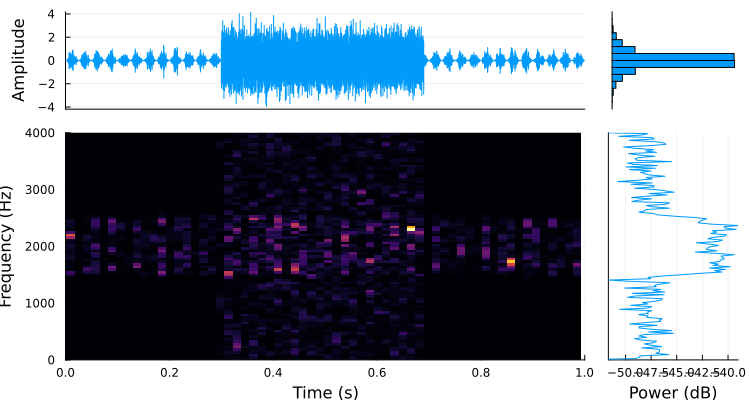

PlotSpectroTemporal(sink, frequency_limits = [0, 4000])
